V-INSP-S
Small wine maturing cabinet, 1 temperature, which can be built-in or flush fitted - Inspiration
If you want to store wine in your interior£3,910.20
Including VAT £651.70
Inspiration Collection

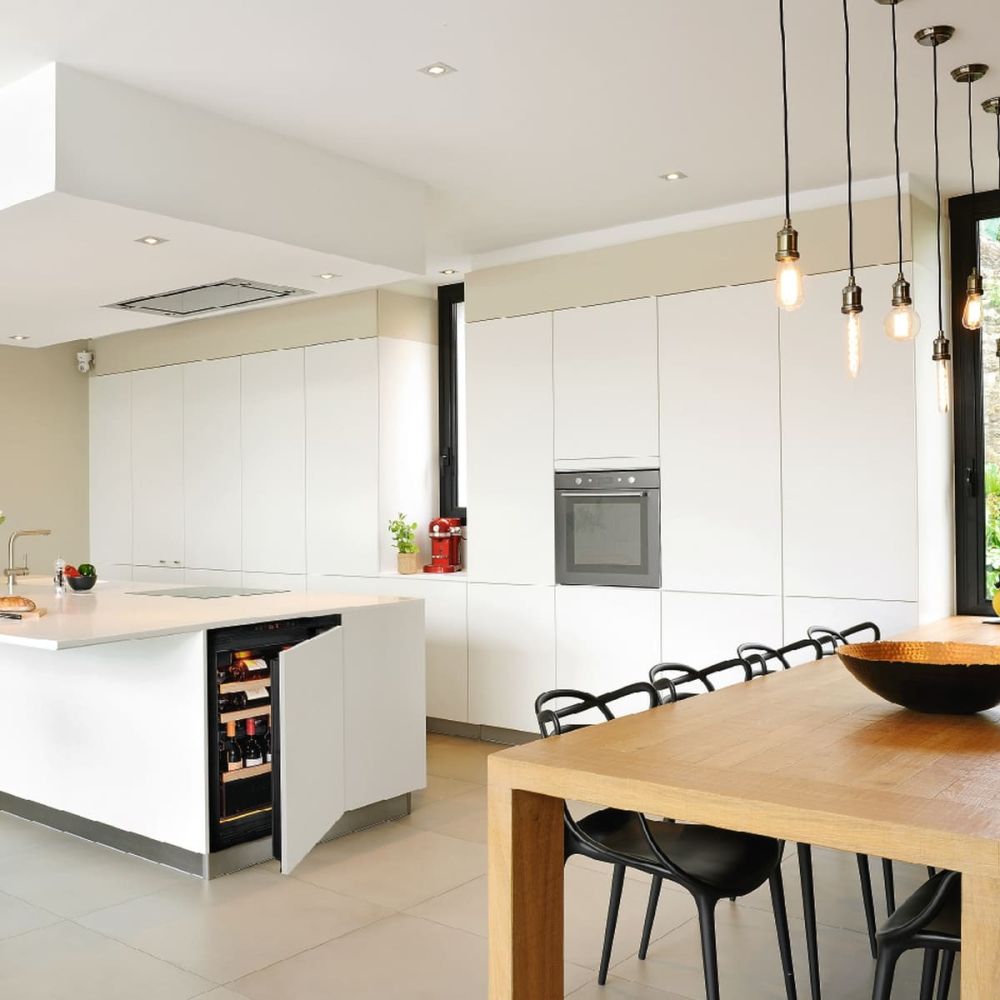

Built-in wine cabinet to suit your home.
Inspiration is compact, it brings together discretion and elegance, so it is perfect for fitting inside a custom-made unit. One-temperature version recreates the exact conditions found in a natural cellar, by meeting the criteria essential for wine storage.
1-temperature for maturing.
As a single-temperature wine maturing cabinet, Inspiration offers the same advantages as a natural cellar and can be set from 5-20°C.
That means: controlled temperature, suitable humidity thanks the walls in embossed aluminium, constant ventilation, UV protection, extra protection from vibration owing to the actual design of the cabinet.
Make way for understated elegance.

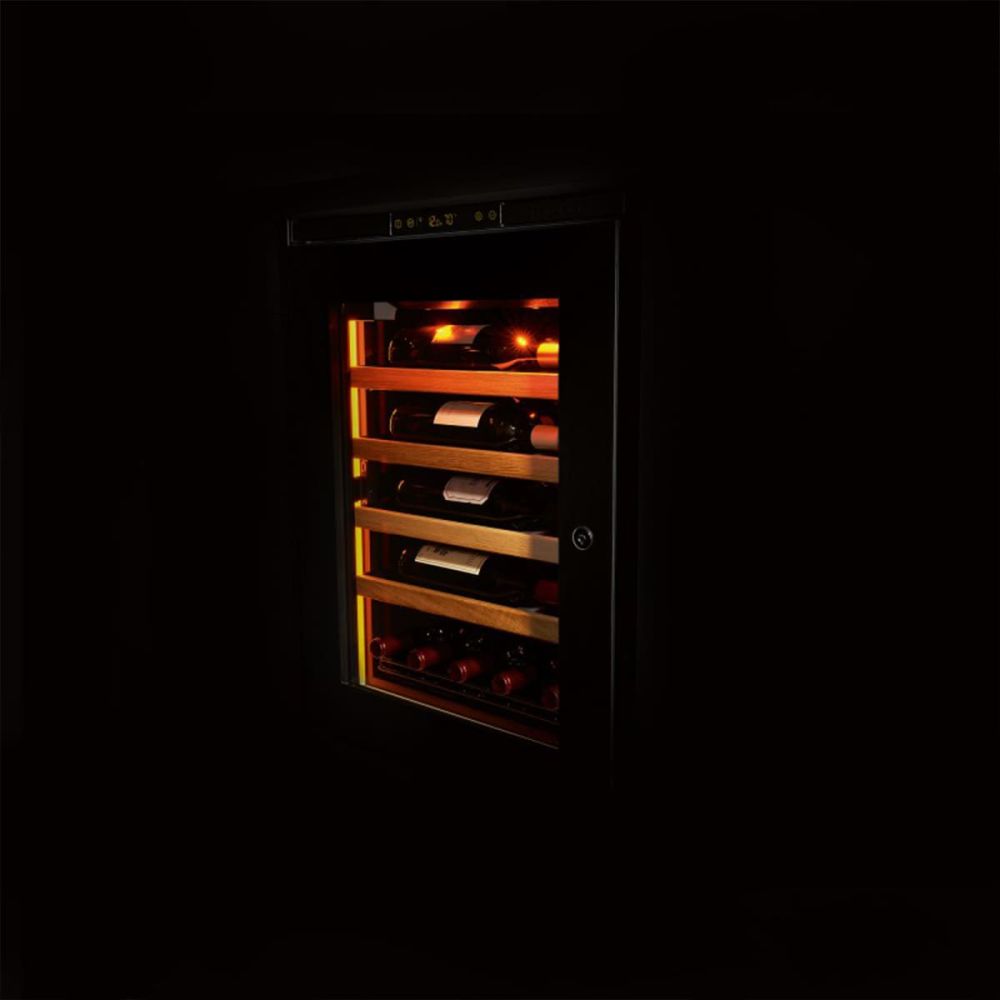

The bottles are subtly displayed by amber lighting and the labels of your best bottles are beautifully accentuated.
A shelf created for you.

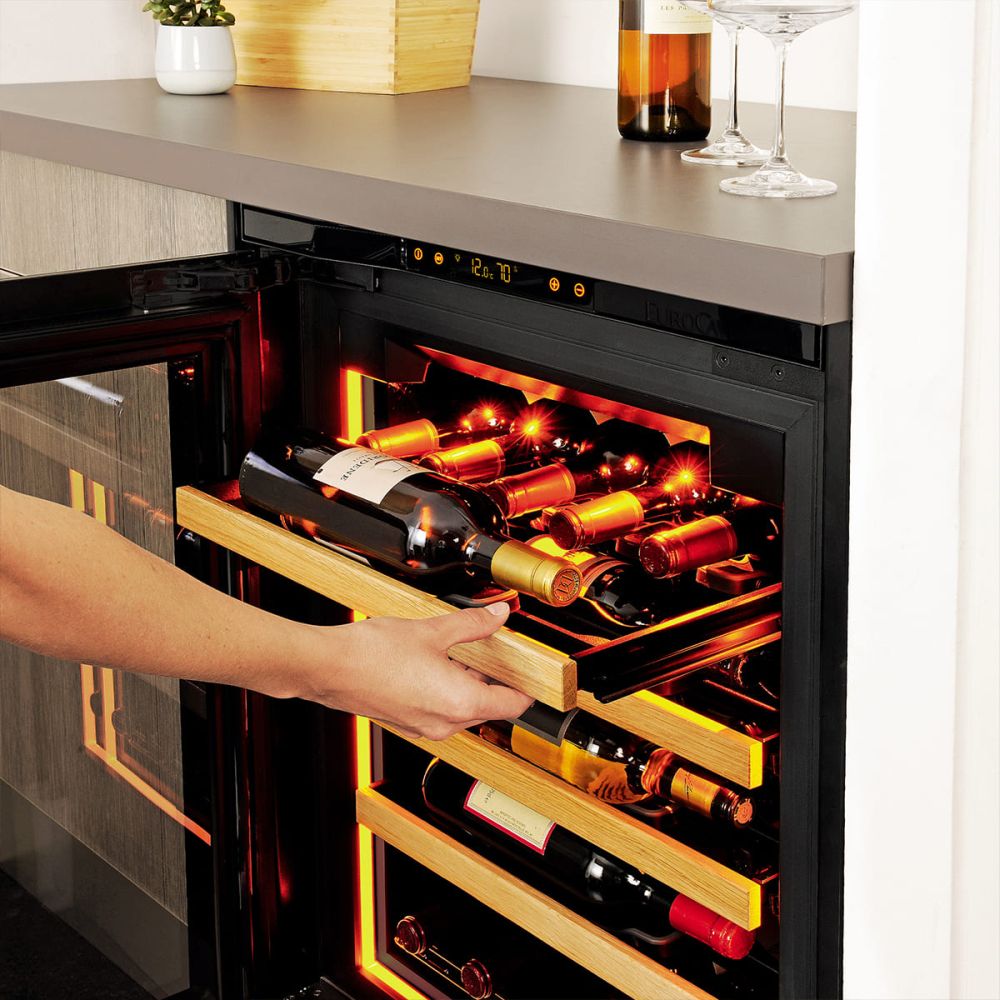

Inspiration's sliding shelf offer the very best. The structure of the shelf conceals all of its technical features beneath its aesthetic curves. A soft-close device provides quiet, smooth handling for your wine.
You can store, display or stand your full or open bottles upright according to your requirements because Inspiration allows the freedom to choose from three types of shelf!
Take pleasure in writing the names of your wines on the detachable shelf labels in epoxy-coated steel.
Sliding
6 bottles
Storage
22 bottles
Serving
16 bottles
Exclusive to EuroCave: the Main du Sommelier support.
The "Main du Sommelier" (Sommelier's hand) bottle support is a structure in two materials fastened to the shelf and detachable.
It protects your bottles from vibration and holds them securely on the shelf, according to their shape and size.
Its design came about from working with sommeliers, so it seemed only natural to name it after them.
Designed to enhance interiors.
Technical elements are concealed, air vents are invisible, handles are built into the door, the handle grip is subtle.
Amber transparency with the glass or full glass doors. Or minimalist design with a door which matches the elements of the unit it is built into.
Porte 100% vitrée
Full Glass
Porte vitrée
cadre inox
Porte vitrée technique
panneau décor à adapter
Porte pleine technique
panneau décor à adapter

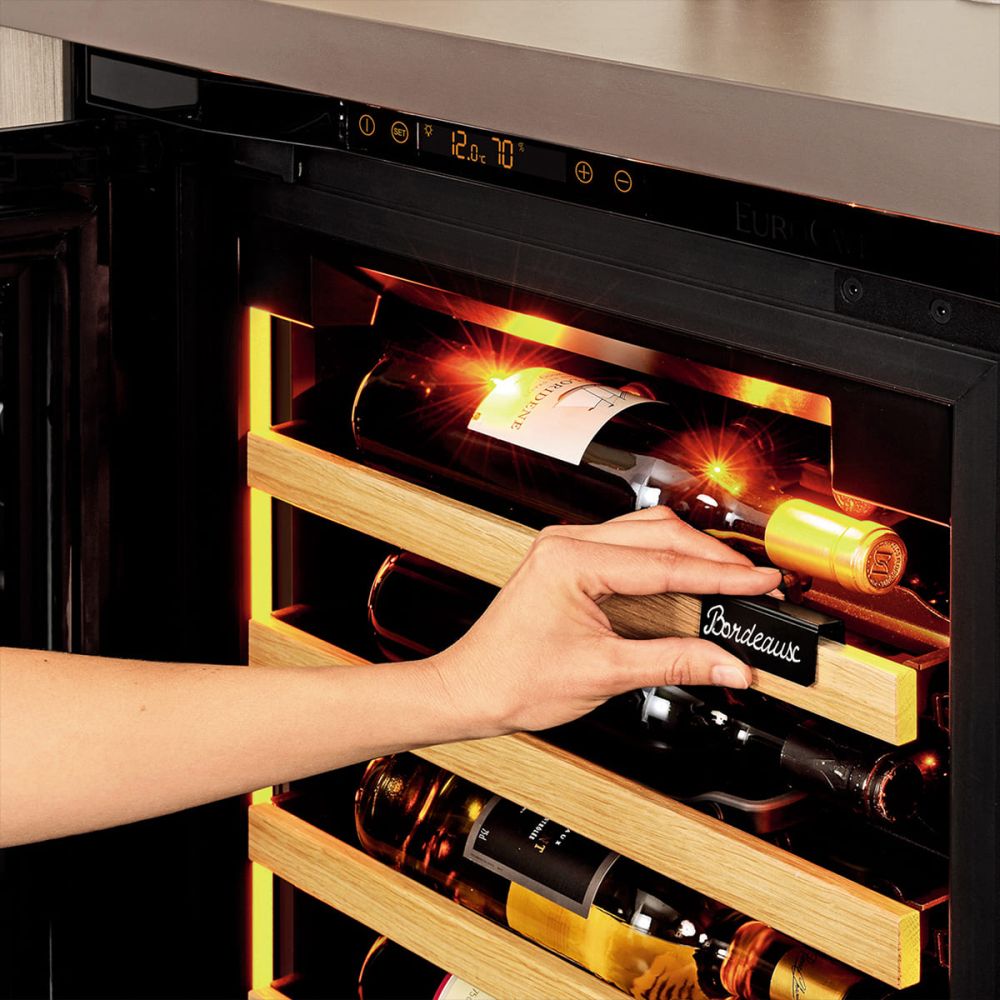

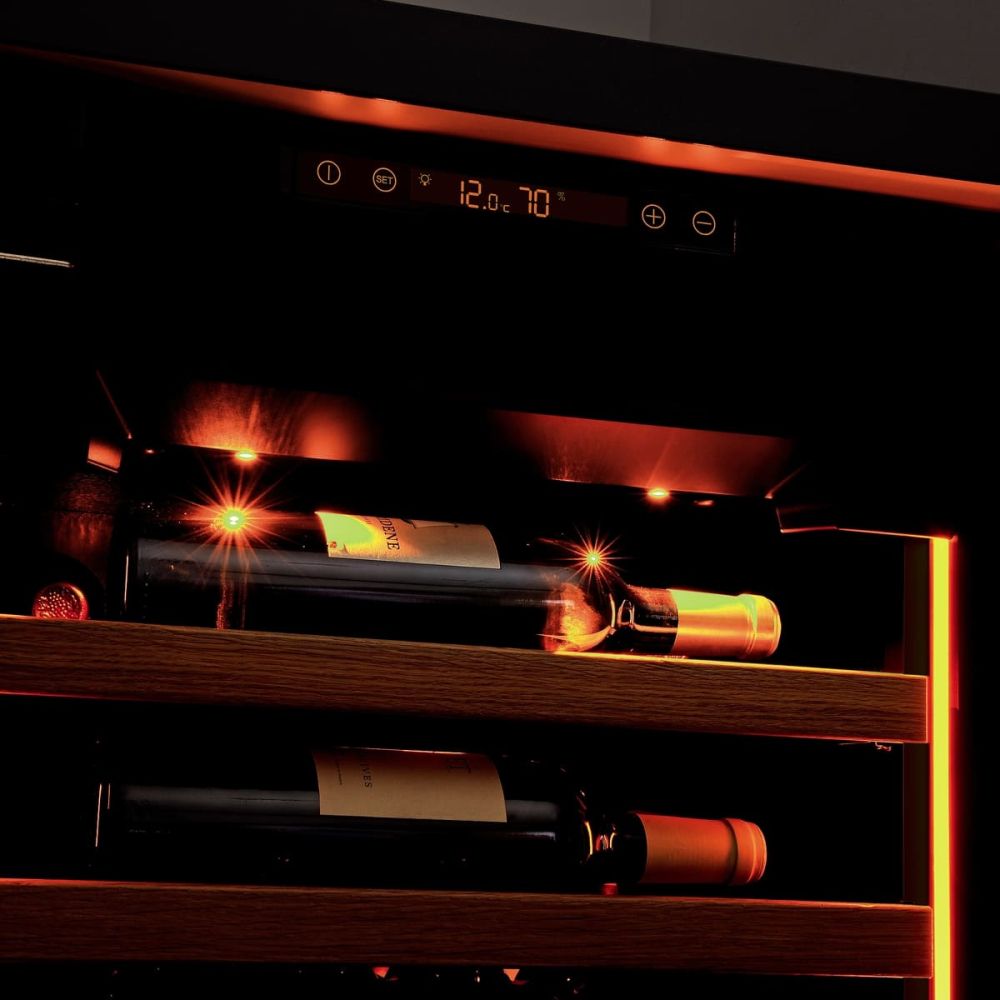

Tactile screen with backlit keys.
The screen displays the actual temperature and humidity inside your cabinet and not the setting.
The display standby makes the control panel subtle and discreet.
The safety of your wine comes first.
Access to the contents of your wine cabinet is secured via a dual action lock. The audible and visual alarms protect your wine in the event the door is left open, sensor fault, temperature fault or if the humidity limit is reached. The visual alarm informs you when it is time to replace your filter.
Specifications
Essential specifications
Collection
Inspiration
Amount of temperatures
Single-temperature
Type of product
Wine cabinets
Cabinet colour
Grey
Function
Wine maturing
Dimensions
H 810-880 x W 557-594* x D 597 mm (*With decorative filler strips)
Guarantee
5 years parts, labour and travel
Spare part availability
11 years from the date the product was manufactured (information given on the nameplate).
Interior lighting
Amber mood lighting which illuminates the entire cabinet (2 LEDs fitted under the control panel and amber light strip)
Flush fitting
Yes - flush-fitting instructions must be observed
Built-in
Yes - installation instructions must be observed*
Adjustment of feet
Yes - 4 adjustable feet
Maximum thickness of panel
20 mm
Type of handle
Grip to be provided on aesthetic panel of your choice
Type of door selected
Technical solid door for attaching your own panel
Weight of cabinet when empty (no shelves)
49,7 Kg
Reversible door
Yes
Maximum weight of panel
12 kg
Technology and safety
Type of control
Electronic
Temperature setting range
5°C - 20°C (single temperature throughout the cabinet)
Recommended outside temperature range
12°C - 35°C
Display and settings
Tactile control panel - backlit keys
Humidity display
Yes, permanent display when the temperature is set from 9°C - 15°C
Clay ball cassette(s) supplied
Yes
Charcoal filter
Yes
Alarm(s)
Yes
Type of alarm(s)
Visual alarms: humidity fault, humidity level alarm, charcoal filter / visual and audible alarms: temperature fault, sensor fault, open door
Lock
Yes
Automatic defrosting
Yes and double frost-protection device
Cold air production technology
Static cold air - compressor
Heat activation technology
Automatic - cut off: adjustable
Heat production technology
Heater
Refrigerant
R600a
Inside walls
Stucco aluminium sheet
Type of insulation
Polyurethane foam (PU)
Outside covering
HDF (high density fibre) melamine-coated panels
Recommended outside temperature range
12°C - 35°C
Layout composition
This model's maximum capacity
30 bottles
Recommended interior equipment for maximum capacity
1 storage shelf + 1 sliding shelf
Sliding shelf description
Sliding shelves fitted with Main du Sommelier bottle supports allowing a bottle to be displayed at the front
Bottle identification system
6 labels in black epoxy-based paint supplied with each sliding shelf and a white marker pen
Capacity of pack selected
28 bottles
Type of pack selected
2 sliding shelves and 1 serving shelf with a 1/2 shelf on top
Shelf materials pack selected
Sliding shelf in steel and front in oak wood / Serving drawer in steel and front in oak wood
Pack selected
Serving pack
Shelf front pack selected
Light oak wood finish
Performance
Climate class
SN-ST
Useful volume
94 Litres
Acoustic class
C
Noise emission (dB(A))
38
Annual energy consumption Aec (kwh/yr)
99
Energy efficiency class
F
