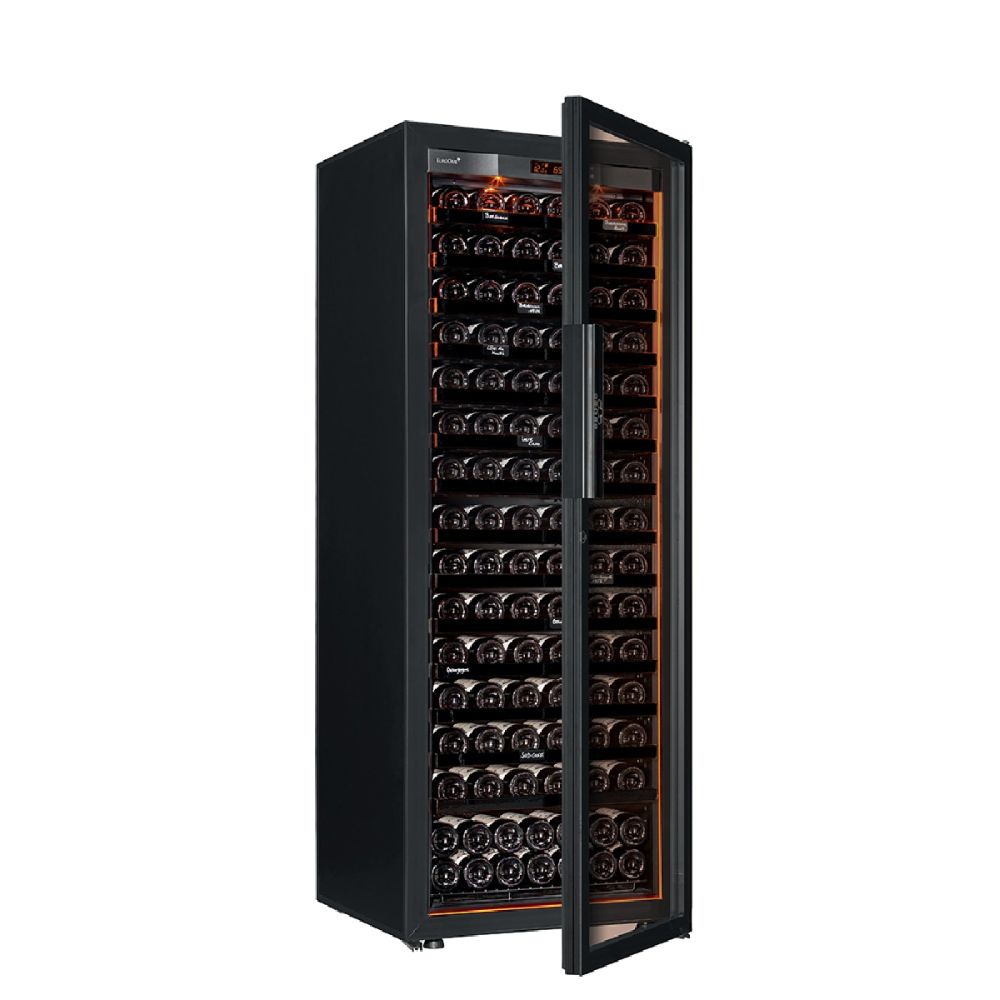

V-REVEL-L
Large maturing cabinet, 1 temperature - Revelation
An elegant design for ideal wine maturing£7,239.40
Including VAT £1,206.57
Revelation Collection
For wine aging and displaying remarkable wines.
Your wines are matured in the best possible conditions and the amber lighting displays your finest wines.
Because choice is a luxury, the interior layout and the door can be configured according to your requirements.
It recreates the exact conditions found in a natural cellar.
Revelation recreates the exact same conditions found in a natural cellar to mature your wines in the best possible conditions: controlled temperature, suitable humidity thanks the walls in embossed aluminium, constant ventilation, UV protection, extra protection from vibration owing to the actual design of the cabinet.

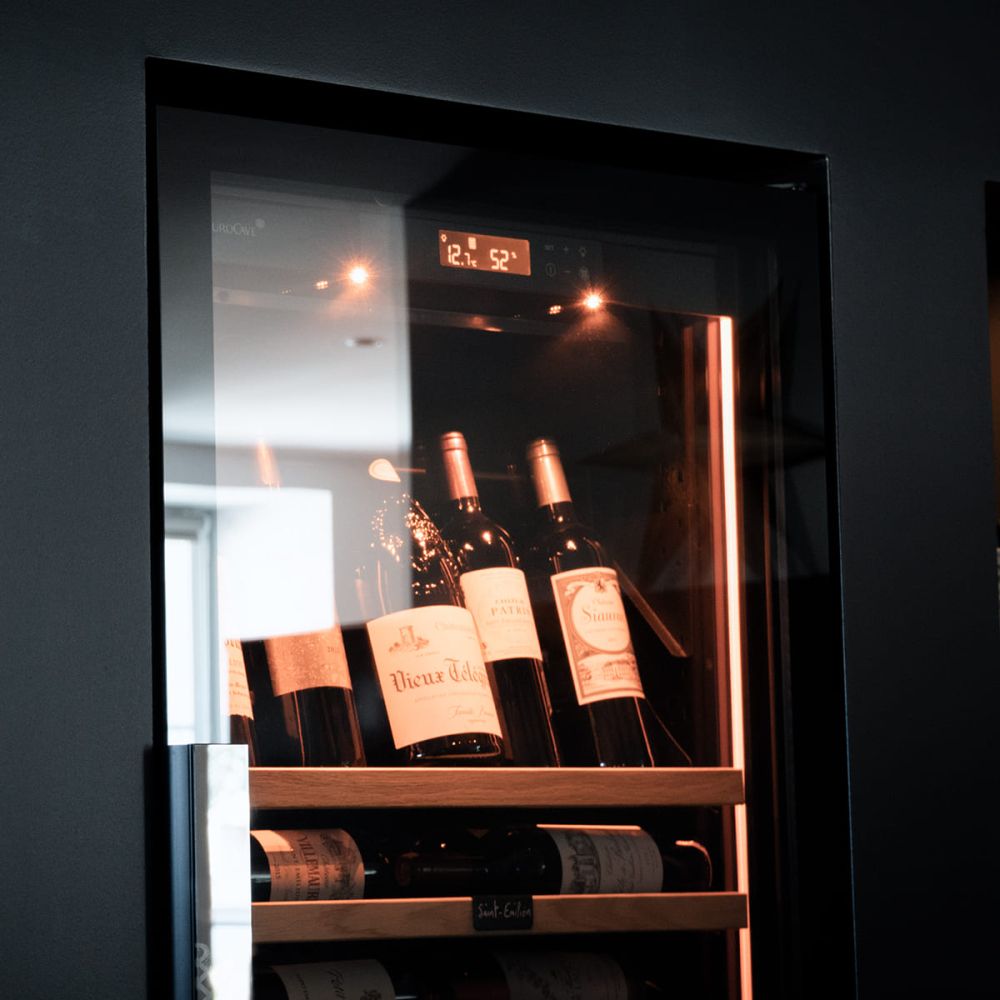

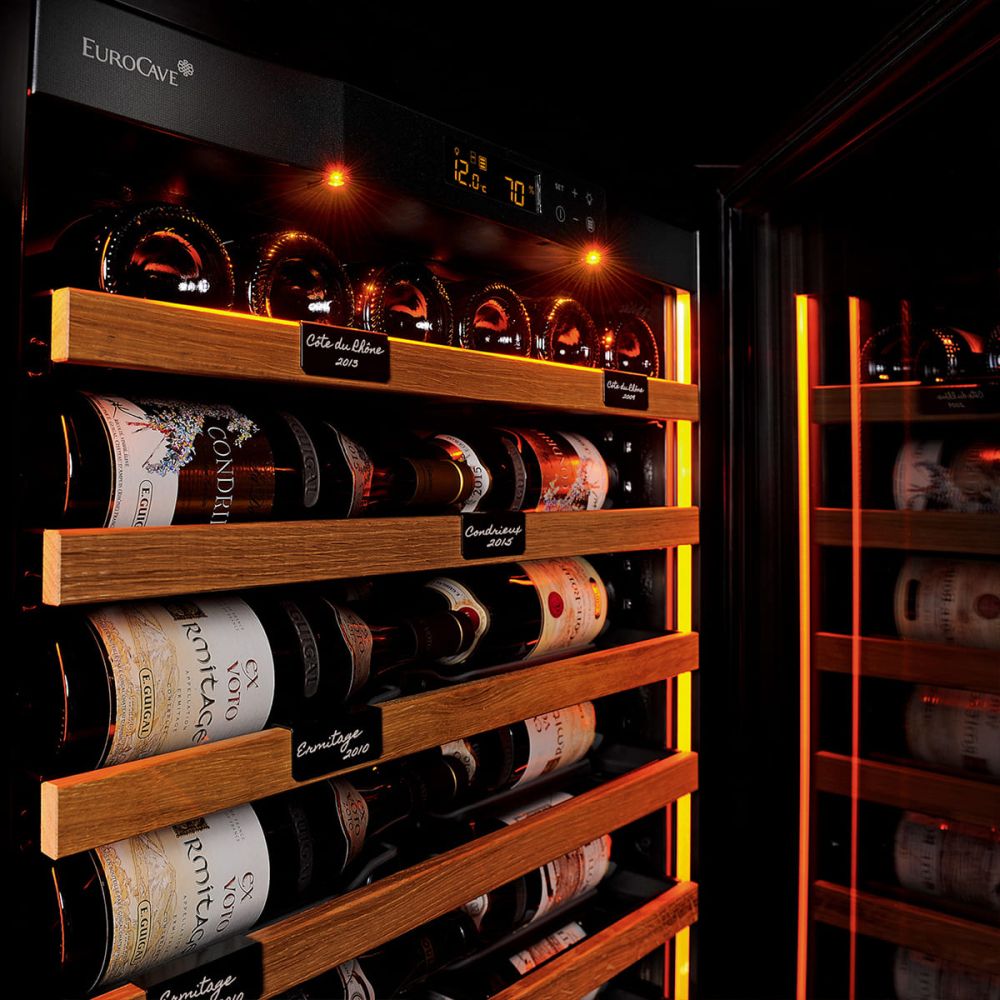

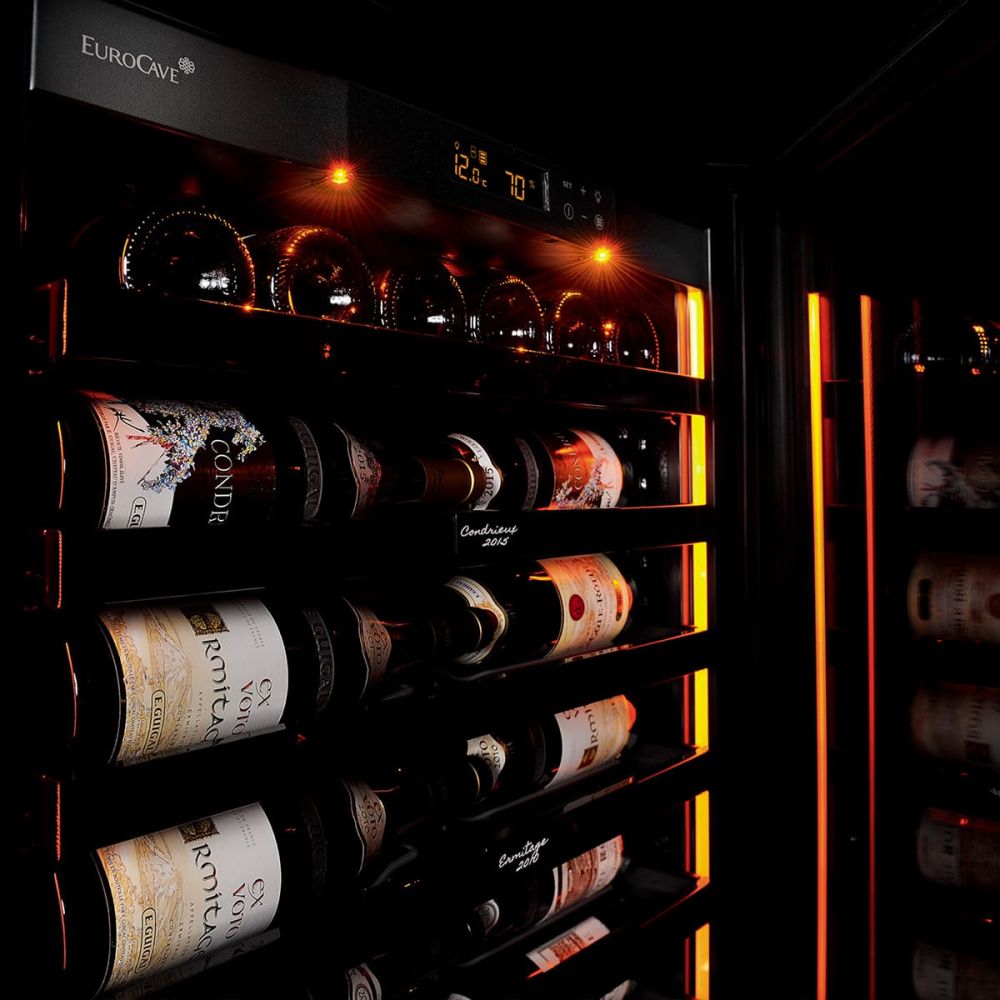

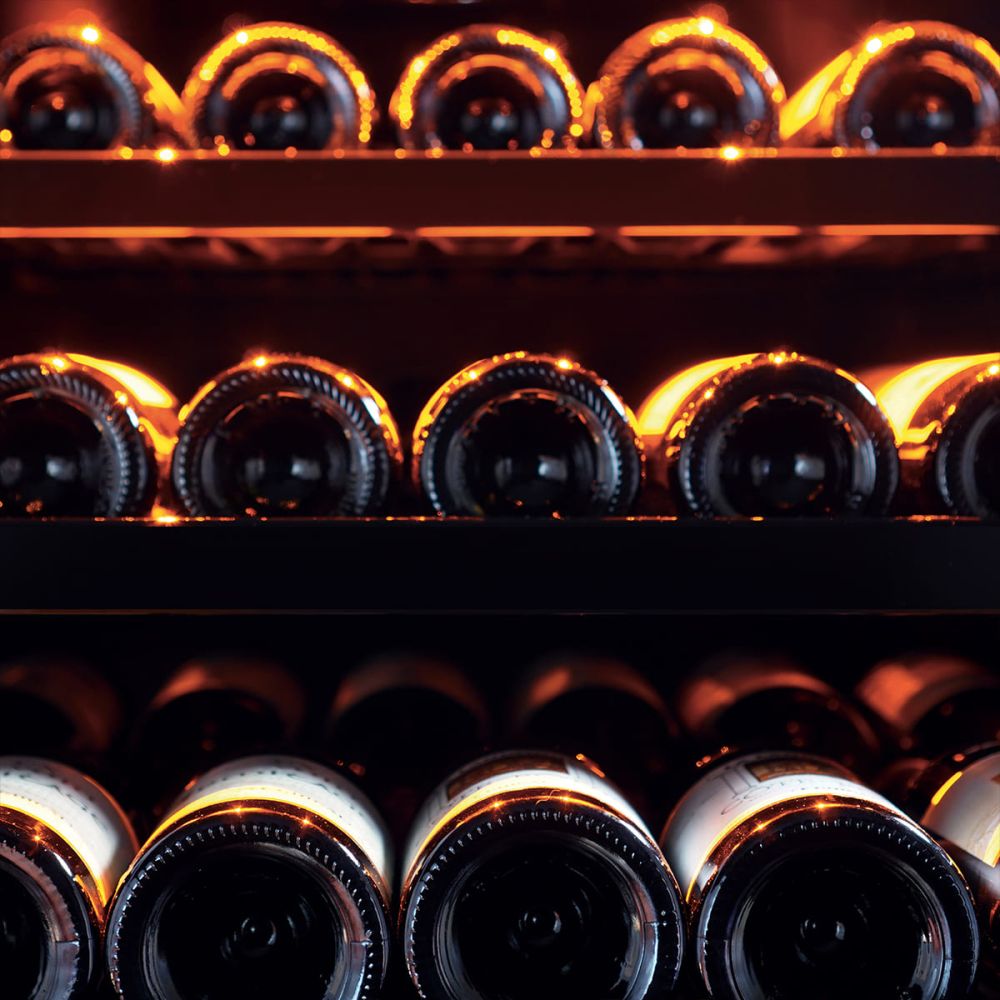

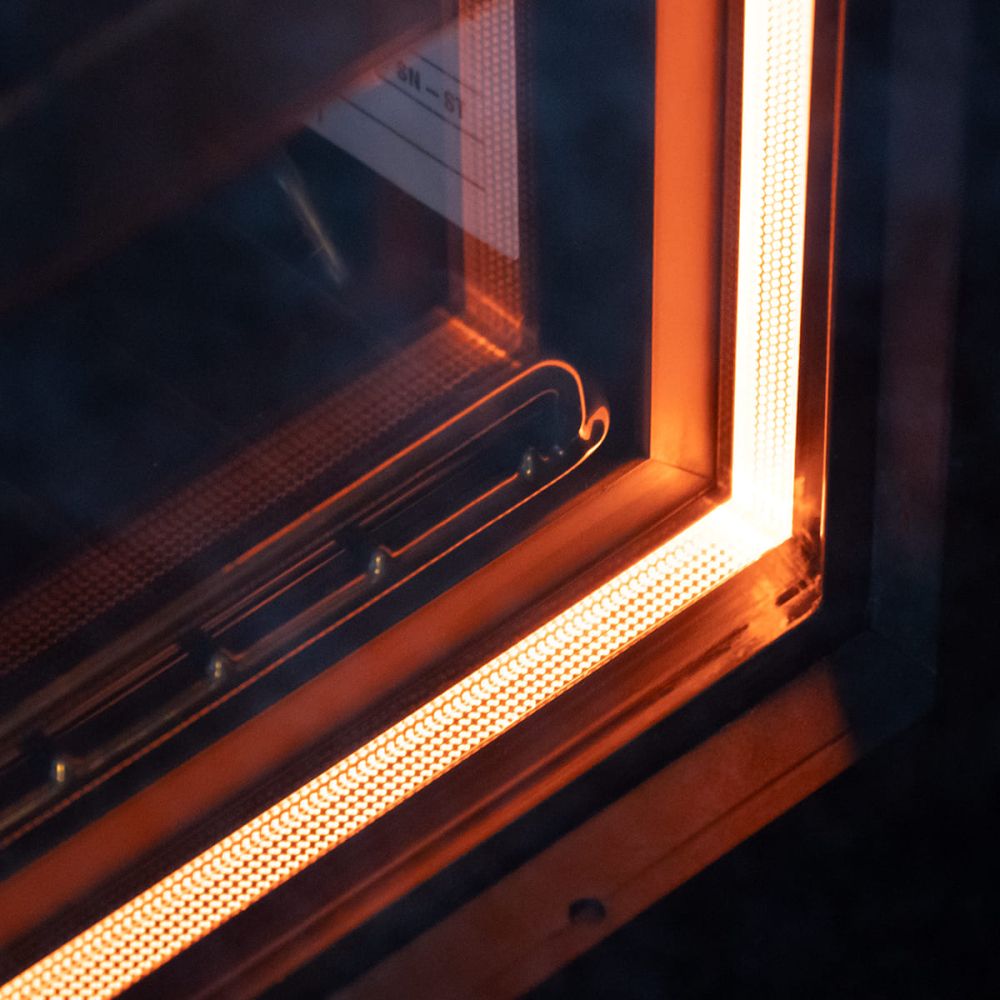

A halo of light.
Your wines are surrounding by a subtle halo of U.V.-free light which runs all around the cabinet and accentuates its contours whilst spectacularly displaying your bottles.

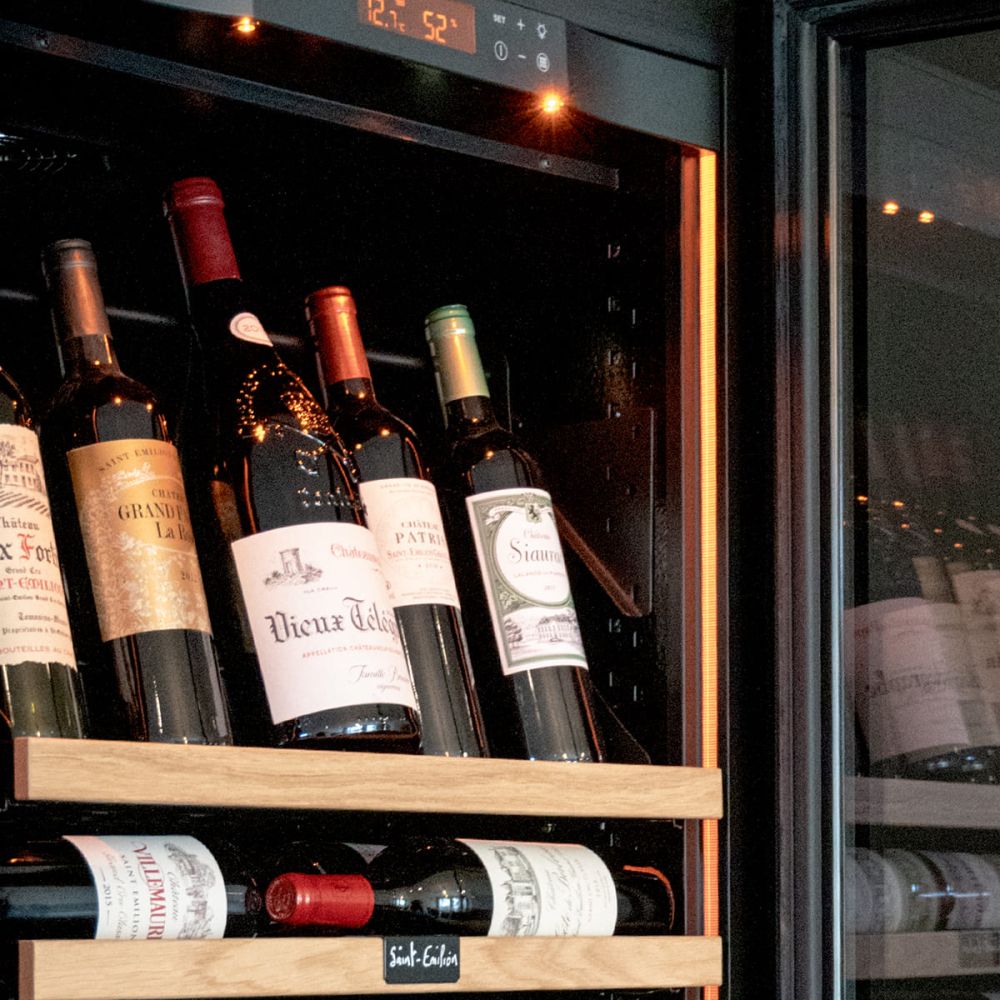

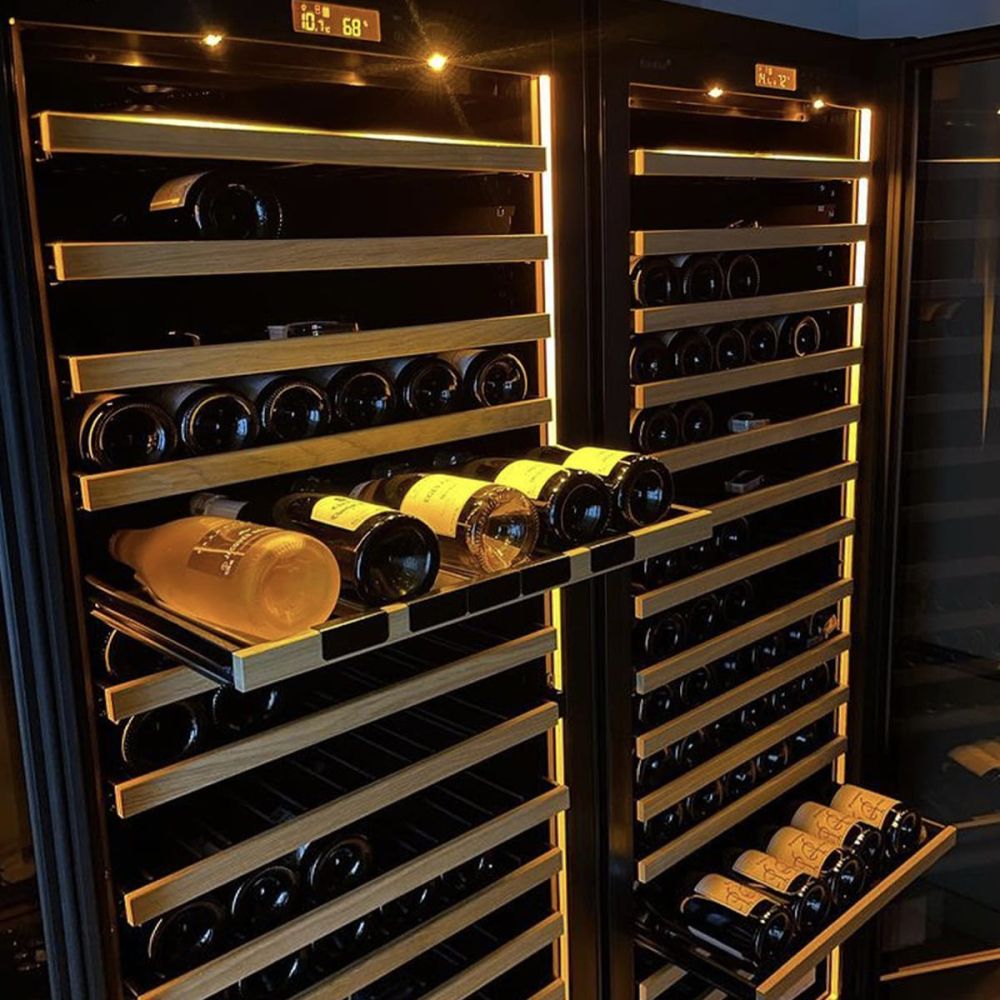

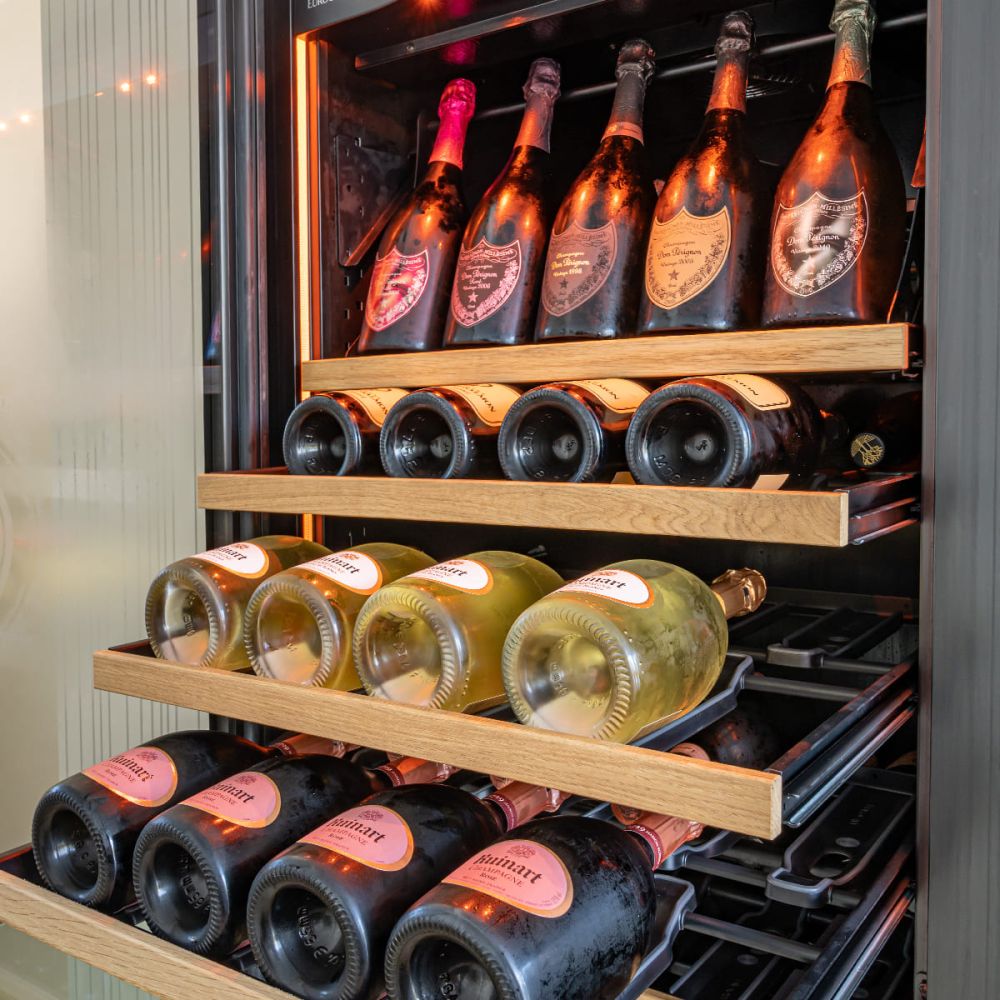

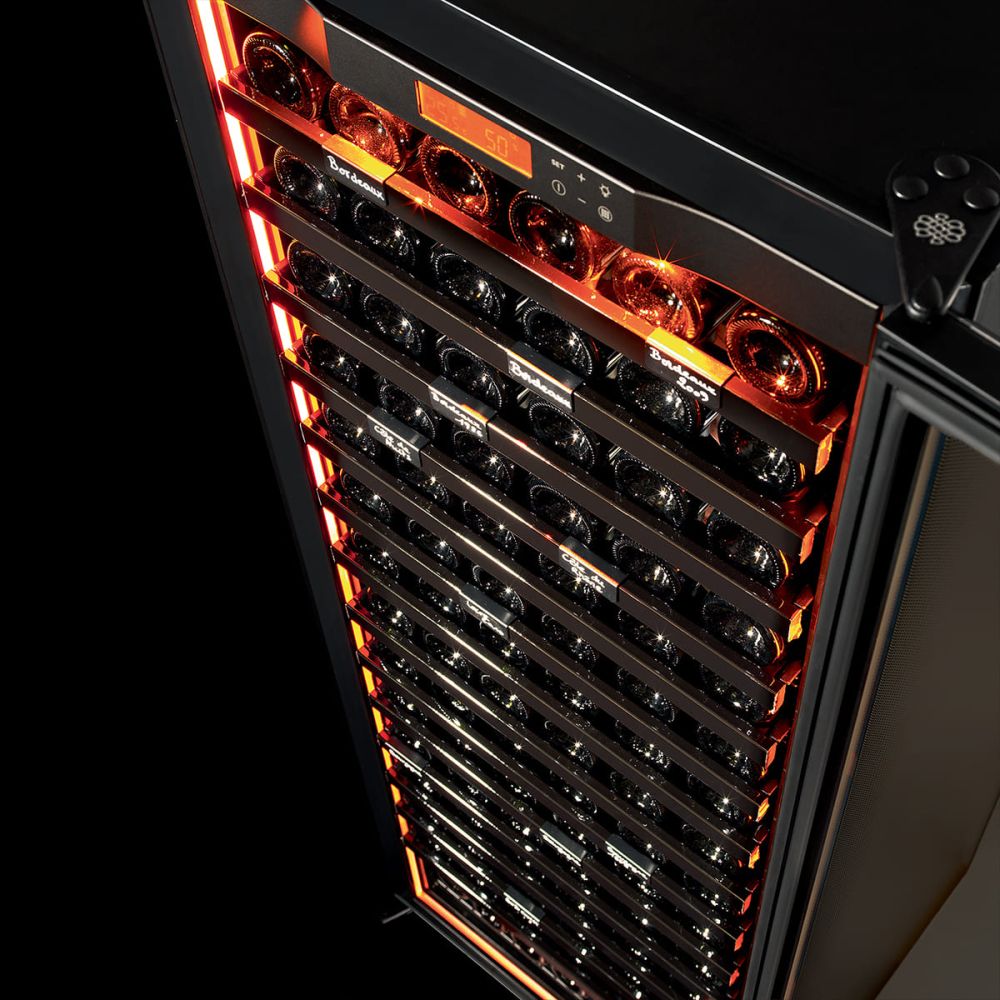

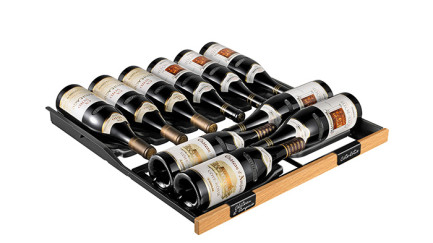

Ergonomic and modular shelves.
Revelation's sliding shelf offer the very best. A soft-close device provides smooth handling for your wine. Your bottles are additionally protected by the Main du Sommelier bottle supports, structures in two materials which cradle the bottles and protect them from vibration.
Finally, the front section of the shelf allows you to organise your cabinet according to your requirements, thanks to 2 modular bottle cradles.

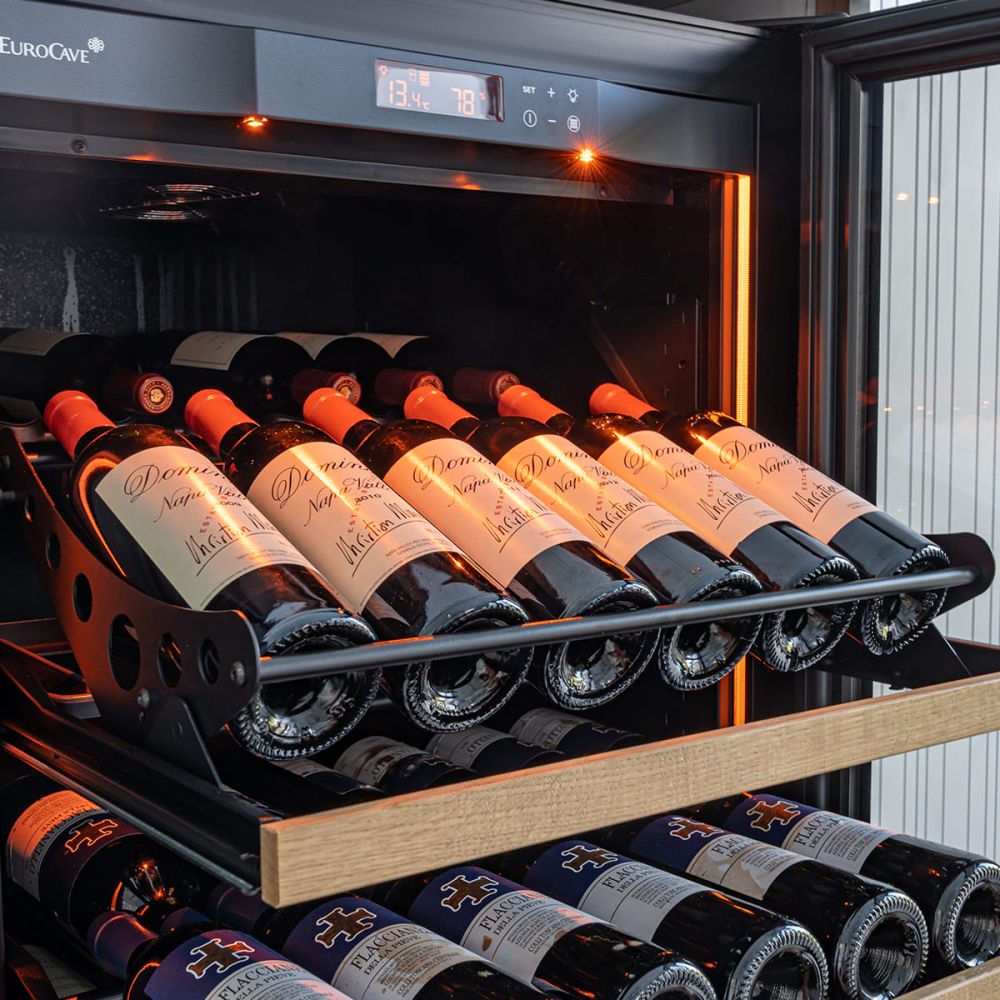

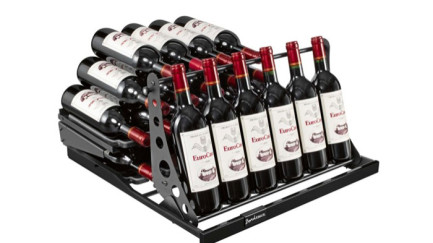

Let yourself be tempted by our articulated presentation kit for a wow effect.
Sliding
12 bottles
Display
32 bottles

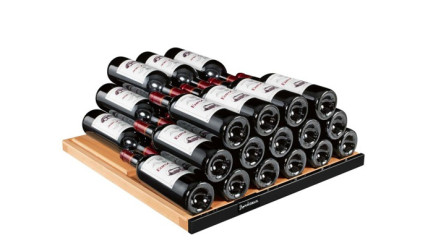

Storage
72 bottles

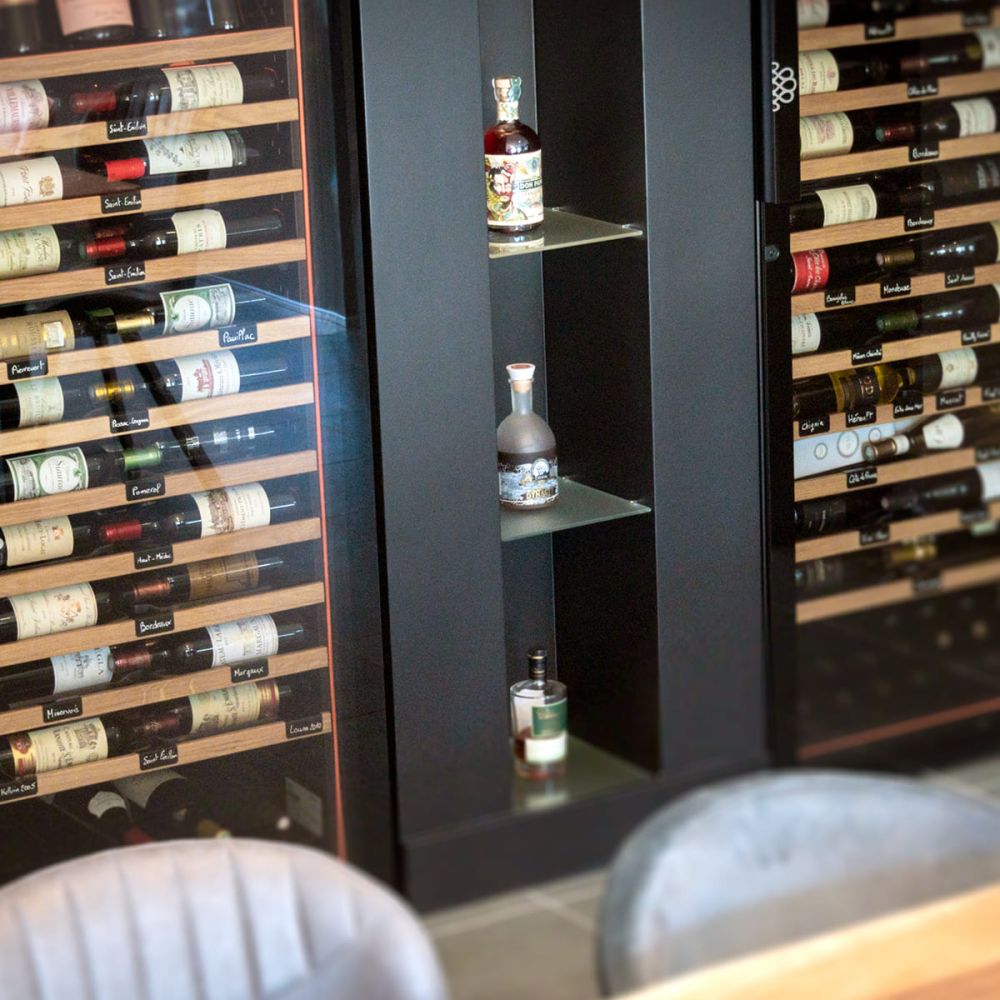

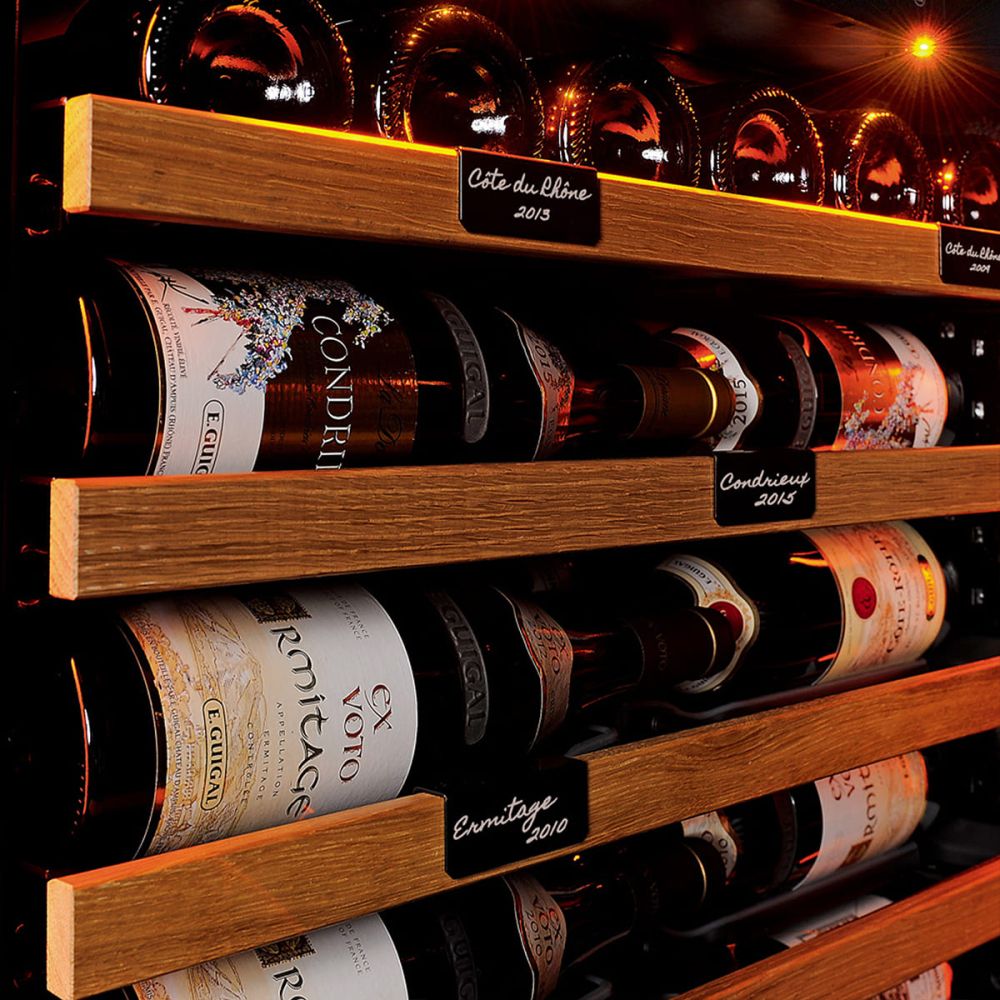

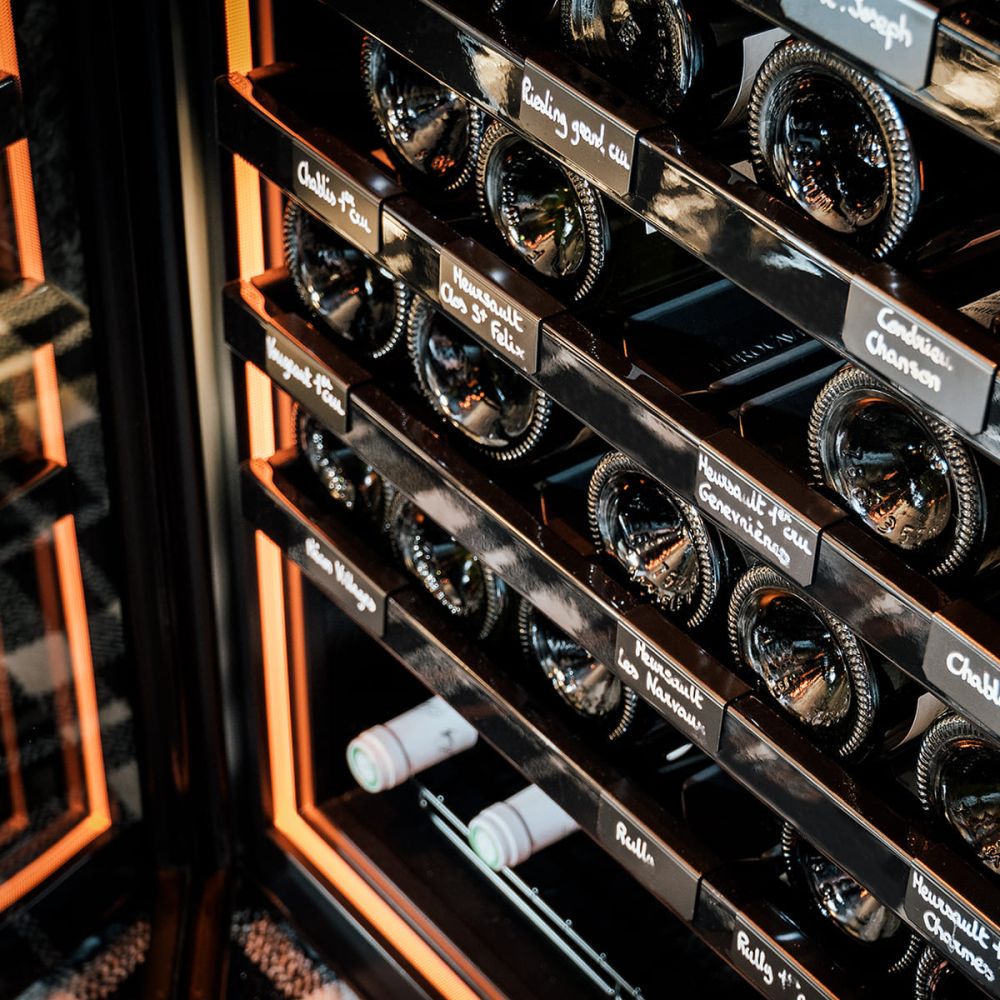

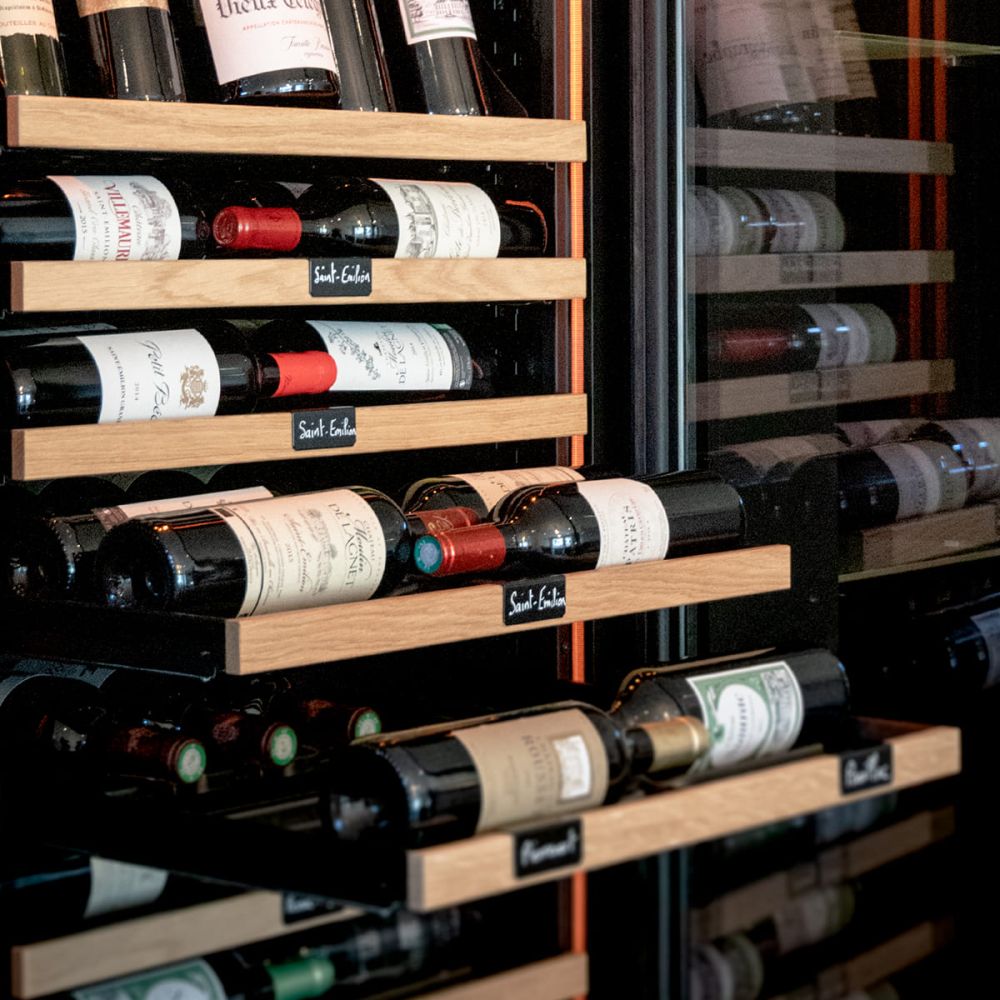

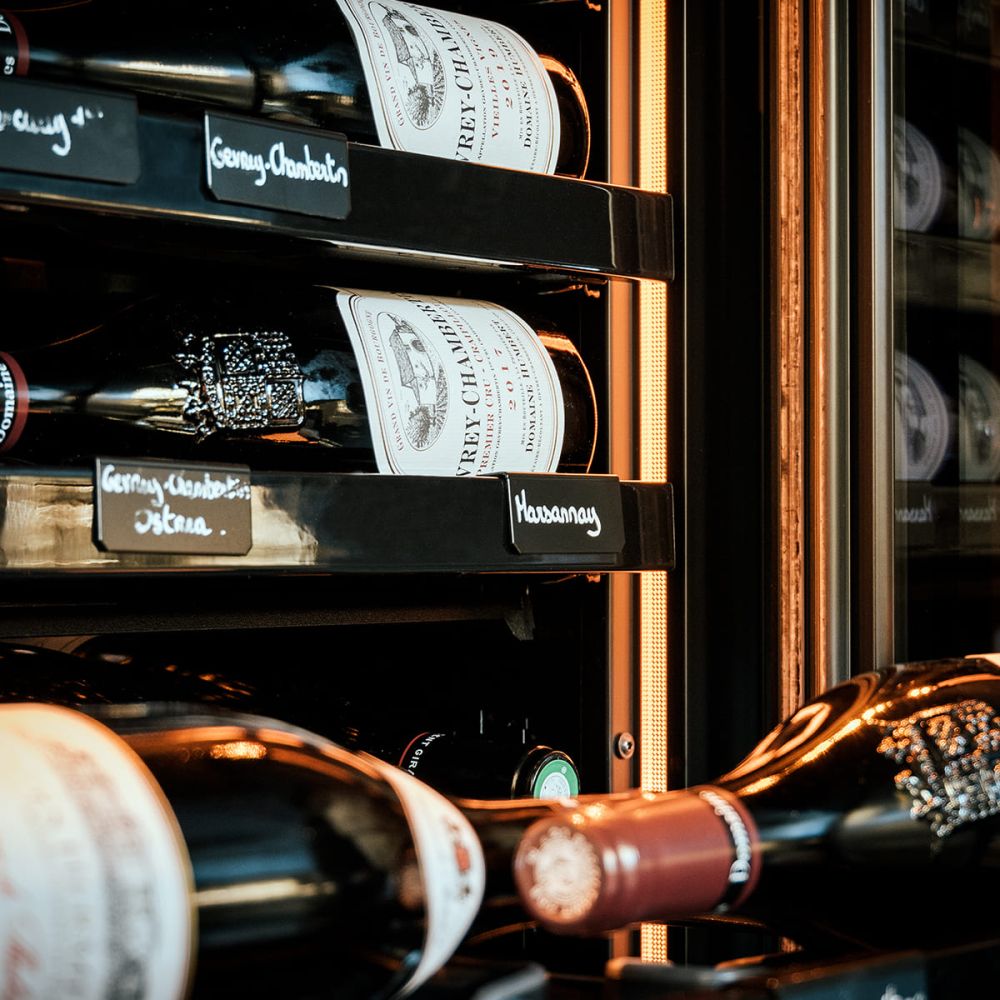

Easily find your bottles.
Take pleasure in writing the names of your bottles on the detachable shelf labels in epoxy-coated steel.*
*white marker provided
A large choice of elegant doors.
For all cabinets in the revelation collection, it is possible to choose the door finish to fit perfectly with your interior.
Solid door
with glass frame

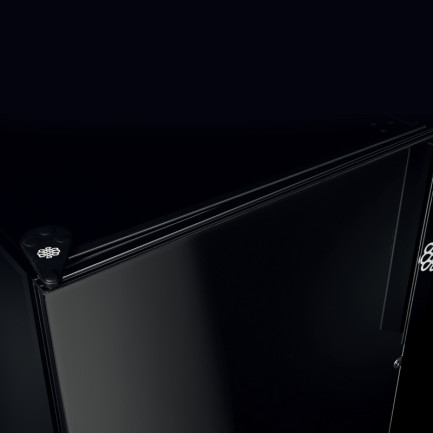

Black Piano

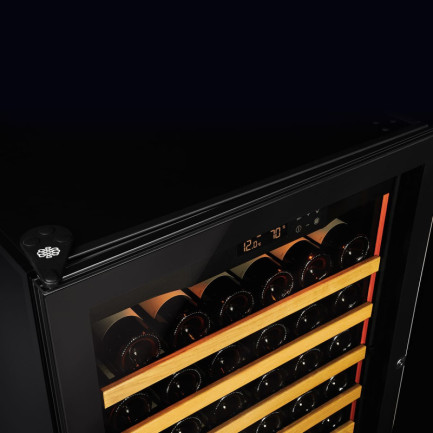

Full Glass door

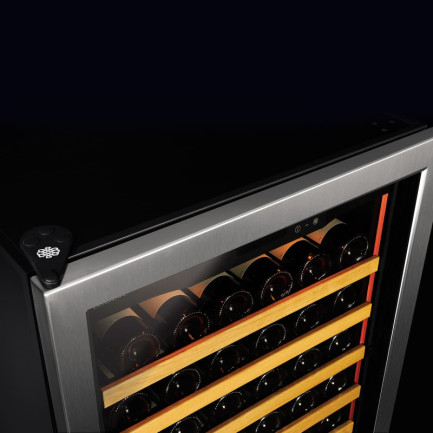

Glass door
with stainless steel frame
removable signed glass hanfle
The safety of your wine comes first.
The contents of your wine cabinet is secured by a dual action lock.
Alarms protect your wine in the event of the door being left open, sensor or temperature fault, humidity level abnormally low or high.
The visual alarm tells you when it is time to replace your charcoal filter.

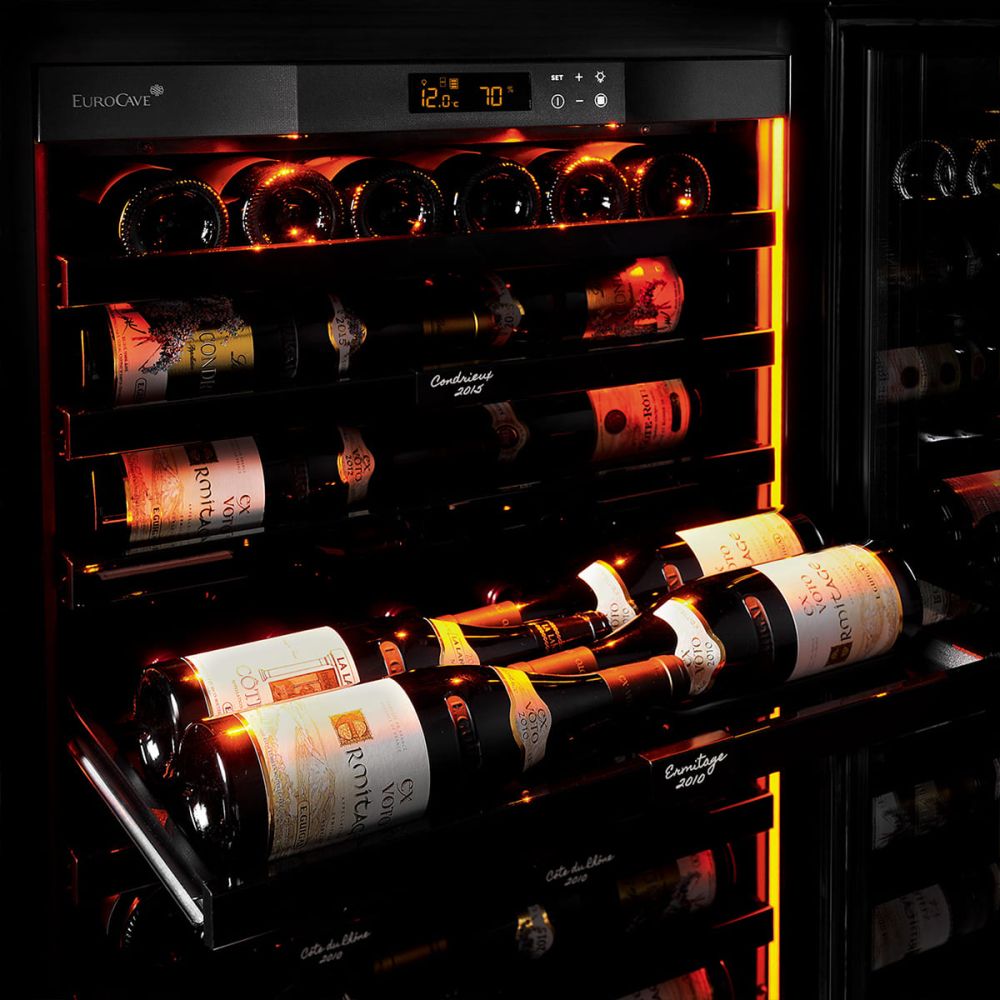

A control panel wich provides all the essential infortmation.
Manage your wine cabinet with the touch control panel with LCD screen.
For your peace of mind, we display the actual humidity and temperature inside your cabinet and not the setting.
Additional information.
Our "free-standing" cabinets can also be flush fitted but there are certain rules that need to be followed, notably in terms of air circulation and electrical installation. We recommend that you contact your store and our wine experts for further details.
Specifications
Essential specifications
Collection
Revelation
Amount of temperatures
Single-temperature
Type of product
Wine cabinets
Cabinet colour
Black
Function
Wine maturing
Dimensions
H 1825 x W 680 x D 720 mm (With the rear stop, without the handle)
Guarantee
5 years parts, labour and travel
Spare part availability
11 years from the date the product was manufactured (information given on the nameplate).
Interior lighting
Amber mood lighting which illuminates the entire cabinet (2 LEDs fitted under the control panel and amber light strip)
Flush fitting
Yes - flush-fitting instructions must be observed
Built-in
No. This appliance is not intended to be used as a built-in appliance.
Adjustment of feet
Yes - 2 adjustable feet at the front
Type of handle
Detachable black glass handle on front
Type of door selected
Full glass door (no frame)
Glazing thermal insulation
Double-glazed glass door reinforced with argon gas - screens out up to 97% of U.V. rays
Weight of cabinet when empty (no shelves)
96 Kg
Reversible door
Yes
Technology and safety
Type of control
Electronic
Temperature setting range
5°C - 20°C (single temperature throughout the cabinet)
Display and settings
LCD screen with touch control
Humidity display
Yes, permanent display when the temperature is set from 9°C - 15°C
Humidity control
Yes: 60 % - 75 %
Clay ball cassette(s) supplied
Yes
Charcoal filter
Yes
Alarm(s)
Yes
Type of alarm(s)
Visual alarms: Open door, temperature sensor fault, temperature fault, charcoal filter replacement, humidity level
Lock
Yes
Automatic defrosting
Yes and double frost-protection device
Cold air production technology
Static cold air and air mixing - compressor
Heat activation technology
Automatic - cut off: adjustable
Heat production technology
Heater
Refrigerant
R600a
Inside walls
Stucco aluminium sheet
Type of insulation
Polyurethane foam (PU)
Outside covering
HPL (high pressure laminated) panels
Recommended outside temperature range
0°C - 30°C
Layout composition
This model's maximum capacity
234 bottles
Recommended interior equipment for maximum capacity
3 storage shelves
Bottle identification system
6 labels in black epoxy-based paint supplied with each sliding shelf and a white marker pen
Capacity of pack selected
182 bottles
Type of pack selected
14 sliding shelves
Shelf materials pack selected
Sliding shelf in wood and steel and glossy black front
Pack selected
Premium pack
Shelf front pack selected
Glossy black finish
Performance
Climate class
SN-ST
Useful volume
457 Litres
Acoustic class
C
Noise emission (dB(A))
37
Annual energy consumption Aec (kwh/yr)
190
Energy efficiency class
G
